// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example() { VIZCore3D.NET.Data.MeasureProjectedArea area = vizcore3d.Review.Measure.GetProjectedArea(plane); txtProjectionArea.Text = area.Projected.ToString(); txtTotalArea.Text = area.Outer.ToString(); txtEmptyArea.Text = area.Inner.ToString(); txtCenter.Text = area.Center.ToString(); //투영 면적 중심점 pbProjection.Image = area.Image; VIZCore3D.NET.Data.CameraData camera = vizcore3d.View.GetCameraData(); switch (plane) { case Data.Planes.YZ: vizcore3d.View.MoveCamera(VIZCore3D.NET.Data.CameraDirection.X_MINUS); break; case Data.Planes.ZX: vizcore3d.View.MoveCamera(VIZCore3D.NET.Data.CameraDirection.Y_MINUS); break; case Data.Planes.XY: vizcore3d.View.MoveCamera(VIZCore3D.NET.Data.CameraDirection.Z_MINUS); break; default: break; } List<VIZCore3D.NET.Data.Line3D> lines = vizcore3d.Projection.GetProjection2DLines(); vizcore3d.View.SetCameraData(camera, false); StringBuilder sb3D = new StringBuilder(); StringBuilder sb2D = new StringBuilder(); foreach (VIZCore3D.NET.Data.Line3D line in lines) { sb3D.AppendLine(line.ToString(VIZCore3D.NET.Data.Dimensions.D3)); sb2D.AppendLine(line.ToString(VIZCore3D.NET.Data.Dimensions.D2)); } txtPoints3D.Text = sb3D.ToString(); txtPoints2D.Text = sb2D.ToString(); DrawingControl.SetData(lines); }

// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example() { if (vizcore3d.Model.IsOpen() == false) return; vizcore3d.Review.Measure.AddGeoISPlaneEdgeHeight(); }

// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example1() { if (vizcore3d.Model.IsOpen() == false) return; vizcore3d.Review.SaveAsJson(@"D:\test\test1.json"); //Json 리뷰파일 저장 OpenFileDialog dlg = new OpenFileDialog(); dlg.Filter = "JSON File (*.json)|*.json"; dlg.Multiselect = false; if (dlg.ShowDialog() != DialogResult.OK) return; vizcore3d.Review.Open(dlg.FileName); //Json 리뷰파일 읽기 }

// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example() { if (vizcore3d.Model.IsOpen() == false) return; // Color Index : rev2bst.config.rev 파일 참고 VIZCore3D.NET.Manager.PrimitiveObject root = vizcore3d.Primitive.AddNode("Root", 4 /* Yellow Color*/); VIZCore3D.NET.Manager.PrimitiveObject child1 = root.AddNode("CHILD1", 7 /* Blue Color */); { VIZCore3D.NET.Manager.PrimitiveBox box1 = new VIZCore3D.NET.Manager.PrimitiveBox(); box1.Set2Point( new float[] { 0, 0, 0 }, new float[] { 100, 100, 100 }, 50.0f ); child1.AddPrimitive(box1); VIZCore3D.NET.Manager.PrimitiveBox box2 = new VIZCore3D.NET.Manager.PrimitiveBox(); VIZCore3D.NET.Data.BoundBox3D boundBox1 = new VIZCore3D.NET.Data.BoundBox3D( new VIZCore3D.NET.Data.Vertex3D( 200, 200, 200 ), new VIZCore3D.NET.Data.Vertex3D( 300, 300, 300 )); box2.SetMinMaxPoints(boundBox1); child1.AddPrimitive(box2); } VIZCore3D.NET.Manager.PrimitiveObject child2 = root.AddNode("CHILD2", 11 /* Pink Color */); { VIZCore3D.NET.Manager.PrimitiveCylinder cylinder1 = new VIZCore3D.NET.Manager.PrimitiveCylinder(); cylinder1.Set2Point( new float[] { 400, 400, 400 }, new float[] { 600, 600, 600 }, 50.0f ); child2.AddPrimitive(cylinder1); } VIZCore3D.NET.Manager.PrimitiveObject child3 = root.AddNode("CHILD3", 11 /* Pink Color */); { VIZCore3D.NET.Manager.PrimitivePyramid pyramid1 = new VIZCore3D.NET.Manager.PrimitivePyramid(); float[] matrix = new float[] { 1.0f, 0.0f, 0.0f, 12550.0f , 0.0f, 1.0f, 0.0f, 31857.0f , 0.0f, 0.0f, 1.0f, 1300.0f }; pyramid1.Matrix = matrix; float[] parameter = new float[] { 10f /* X Top */ , 20f /* Y Top */ , 30f /* X Bottom */ , 40f /* Y Bottom */ , 2.5f /* X Offset */ , 4.5f /* Y Offset */ , 50f /* Height */ }; pyramid1.Parameter = parameter; child3.AddPrimitive(pyramid1); } VIZCore3D.NET.Manager.PrimitiveObject child4 = root.AddNode("CHILD4", 11 /* Pink Color */); { VIZCore3D.NET.Manager.PrimitiveCone cone1 = new VIZCore3D.NET.Manager.PrimitiveCone(); float[] matrix = new float[] { 1.0f, 0.0f, 0.0f, 6572.2214f , 0.0f, 1.0f, 0.0f, 25308.0577f , 0.0f, 0.0f, 1.0f, 3587.6716f }; cone1.Matrix = matrix; float[] parameter1 = new float[] { 100.0f /* Bottom Radius */ , 0.0f /* Top Radius */ , 200.0f /* Height */ , 0.0f /* X Offset */ , 0.0f /* Y Offset */ , 0.0f /* Bottom X Shear */ , 0.0f /* Bottom Y Shear */ , 0.0f /* Top X Shear */ , 0.0f /* Top Y Shear */ }; float[] parameter2 = new float[] { 100.0f /* Bottom Radius */ , 30.0f /* Top Radius */ , 200.0f /* Height */ , 0.0f /* X Offset */ , 0.0f /* Y Offset */ , 0.0f /* Bottom X Shear */ , 0.0f /* Bottom Y Shear */ , 0.0f /* Top X Shear */ , 0.0f /* Top Y Shear */ }; float[] parameter3 = new float[] { 100.0f /* Bottom Radius */ , 30.0f /* Top Radius */ , 200.0f /* Height */ , 50.0f /* X Offset */ , 50.0f /* Y Offset */ , 0.0f /* Bottom X Shear */ , 0.0f /* Bottom Y Shear */ , 0.0f /* Top X Shear */ , 0.0f /* Top Y Shear */ }; cone1.Parameter = parameter3; child4.AddPrimitive(cone1); } // Open Model vizcore3d.Primitive.OpenModel("Primitive", false); }

// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example1() { //스냅샷 이미지 320 x 240 자동 추가 vizcore3d.Review.DrawingMarkup.ExitDrawMode(true); vizcore3d.Review.Save("D:\\TEST\\Test.cvr"); } private void Example2() { //스냅샷 이미지 추가하지 않음 vizcore3d.Review.DrawingMarkup.ExitDrawMode(false); vizcore3d.Review.Save("D:\\TEST\\Test.cvr"); } private void Example3() { //스냅샷 이미지 1024 x 768 크기로 추가 vizcore3d.Review.DrawingMarkup.ExitDrawMode(1024, 768); vizcore3d.Review.Save("D:\\TEST\\Test.cvr"); }

// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example() { List<VIZCore3D.NET.Data.ReviewItem> items = vizcore3d.Review.Items; if (items.Count == 0) return; VIZCore3D.NET.Data.ReviewItem item = items[items.Count - 1]; if (item.Kind != VIZCore3D.NET.Manager.ReviewManager.ReviewKind.RK_USER_VIEW) return; int id = item.ID; System.Drawing.Image img = vizcore3d.Review.UserView.GetUserViewImage(id); //스냅샷 이미지 불러오기 if (img == null) return; SaveFileDialog dlg = new SaveFileDialog(); dlg.Filter = "Image (*.jpg)|*.jpg"; if (dlg.ShowDialog() != DialogResult.OK) return; img.Save(dlg.FileName); }

// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example() { List<VIZCore3D.NET.Data.Node> items = vizcore3d.Object3D.FromFilter( VIZCore3D.NET.Data.Object3dFilter.SELECTED_TOP ); if (items.Count == 0) return; vizcore3d.GeometryUtility.OnOsnapPickingItem += GeometryUtility_OnOsnapPickingItem; vizcore3d.GeometryUtility.ShowOsnap( items[0].Index /* Node Index */ , false /* Item : Surface */ , true /* Item : Vertex */ , true /* Item : Line */ , true /* Item : Circle */ ); } private void GeometryUtility_OnOsnapPickingItem(object sender, VIZCore3D.NET.Event.EventManager.OsnapPickingItemEventArgs e) { int nodeIndex = e.NodeIndex; // 선택한 부재의 인덱스 VIZCore3D.NET.Data.OsnapKind kind = e.Kind; VIZCore3D.NET.Data.Vertex3D point = e.Point; VIZCore3D.NET.Data.Vertex3D start = e.Start; VIZCore3D.NET.Data.Vertex3D end = e.End; VIZCore3D.NET.Data.Vertex3D normal = e.Normal; }

// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example() { //X = 카메라 좌우 //Y = 카메라 상하 //Z = 카메라 앞뒤 //범위 설정: X, Y, Z축마다 -1 ~ +1 //Z축: -1에 가까울 수록 모델의 앞이 어두어짐 // 빛 방향 설정 // 카메라 우측 vizcore3d.View.LightDirection = new Data.Vector3D(-1, 0, 1); }

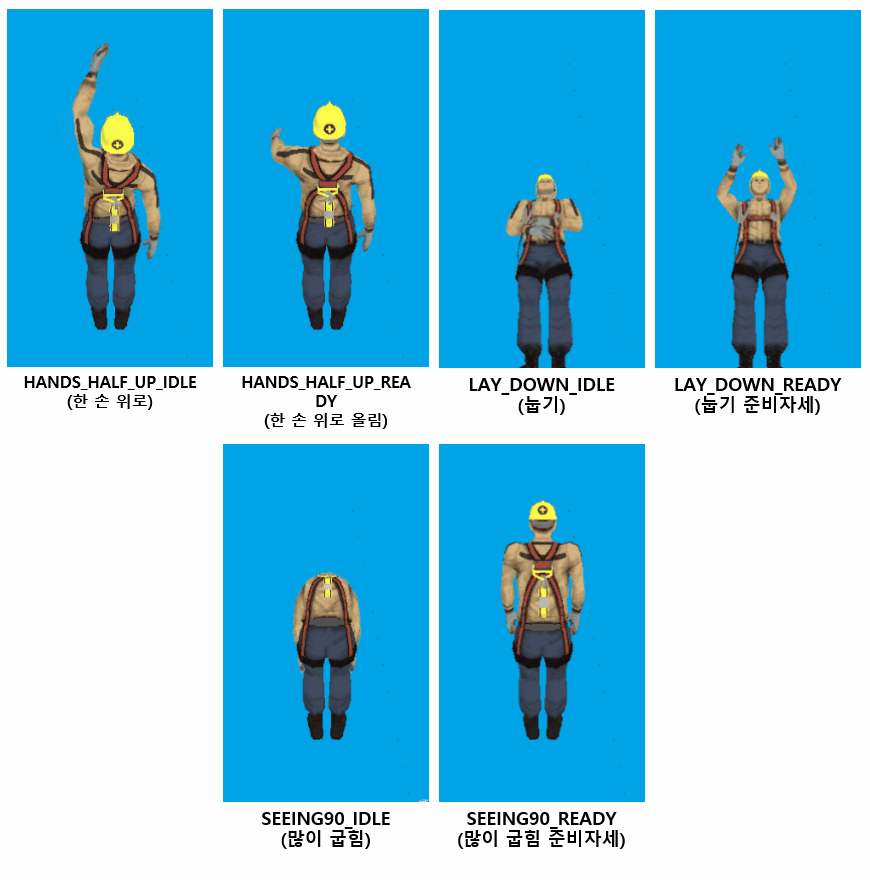

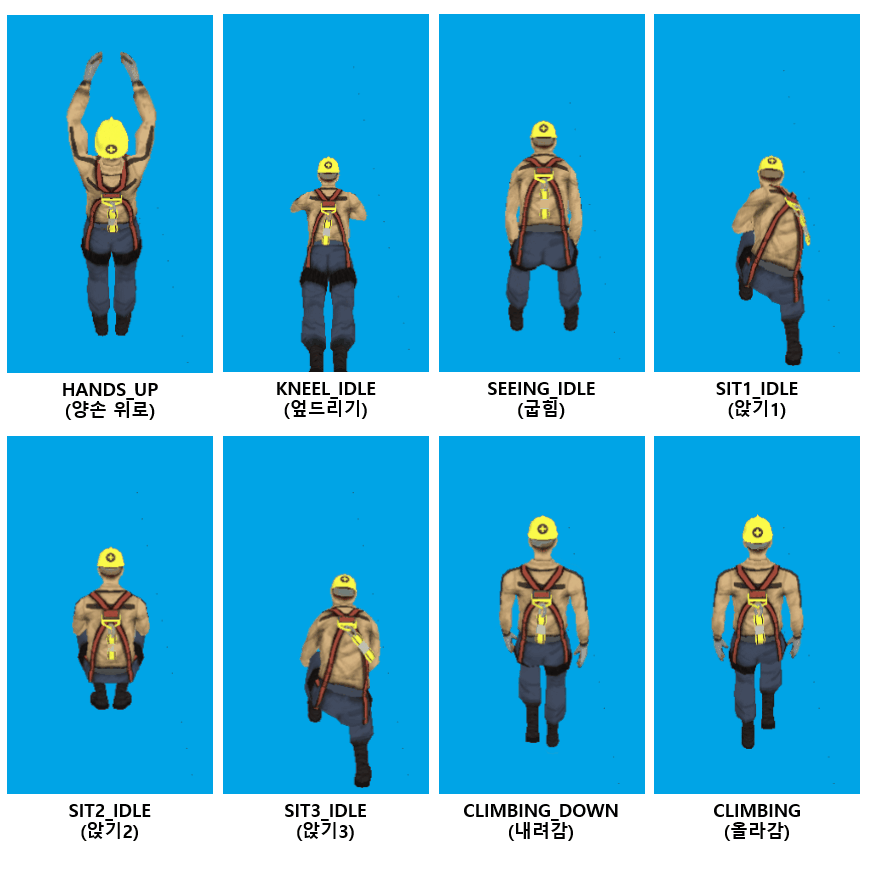

// VIZCore3D.NET Control private VIZCore3D.NET.VIZCore3DControl vizcore3d; private void Example() { vizcore3d.Walkthrough.AvatarModel = (int)Data.AvatarModels.MAN3; vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.HANDS_UP); // 양손 위로 /* vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.KNEEL_IDLE); // 엎드리기 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.SIT1_IDLE); // 앉기1 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.SIT2_IDLE); // 앉기2 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.SIT3_IDLE); // 앉기3 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.CLIMBING_DOWN); // 내려감 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.CLIMBING); // 올라감 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.HANDS_HALF_UP_IDLE); // 한 손 위로 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.HANDS_HALF_UP_READY); // 한 손 위로 올림 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.LAY_DOWN_IDLE); // 눕기 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.LAY_DOWN_READY); // 눕기 준비자세 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.SEEING90_IDLE); // 많이 굽힘 vizcore3d.Walkthrough.SetAvatarPose(Data.AvatarPose.SEEING90_READY); // 많이 굽힘 준비자세 */ }
